画板

最后更新于 2020-05-31 772 次阅读

二改绘画板

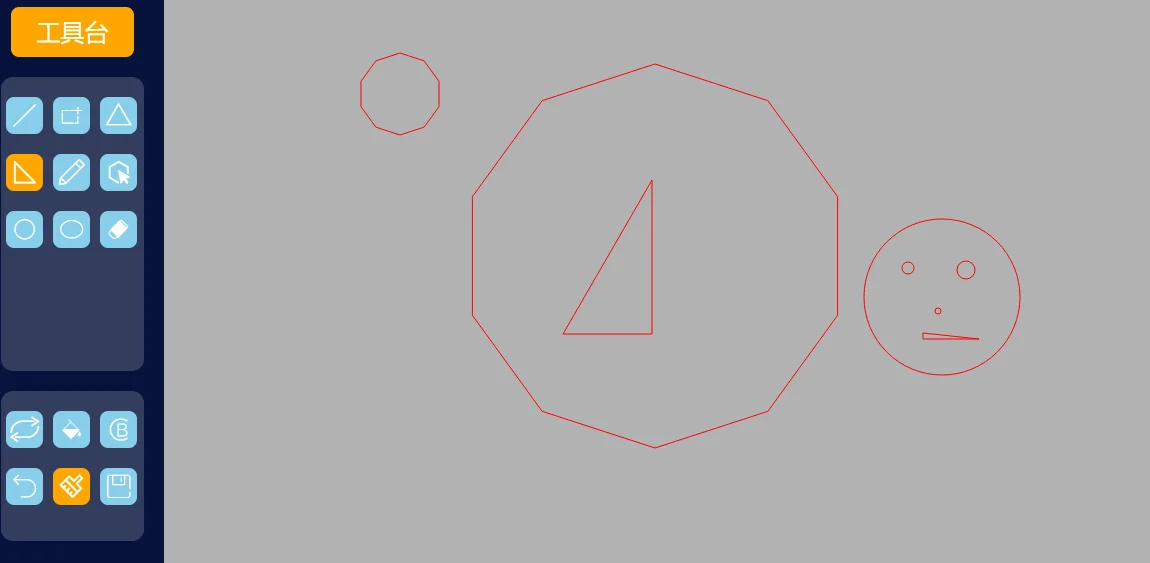

效果：点我

html代码

<!DOCTYPE html>
<html>
    <head>
        <meta charset="UTF-8">
        <title>h_画板</title>
        <link rel="stylesheet" href="css/index.css" />
        <script src="js/jquery-3.3.1.min.js"></script>
    </head>
    <body>
        <div class="h_box">
            <canvas id="canvas" width="1200" height="600"></canvas>
            <div class="h_console">
                <div class="h_tool">工具台</div>
                <ul class="h_tool1">
                    <li id="line" class="bg">
                        <span class="iconfont" title="绘制直线">&#xe653;</span>
                    </li>
                    <li id="rect" class="bg">
                        <span class="iconfont" title="绘制矩形">&#xe648;</span>
                    </li>
                    <li id="dytriangle" class="bg">
                        <span class="iconfont" title="绘制等腰三角形">&#xe601;</span>
                    </li>
                    <li id="zjtriangle" class="bg">
                        <span class="iconfont" title="绘制直角三角形">&#xe705;</span>
                    </li>
                    <li id="tablet" class="bg bgtb">
                        <span class="iconfont" title="铅笔">&#xe6be;</span>
                    </li>
                    <li id="polygon" class="bg bgp">
                        <span class="iconfont" title="绘制多边形">&#xe605;</span>
                        <div class="polygon1">
                            <input type="number" min="3" max="30" value="3" id="range"/>
                            <div class="trag"></div>
                        </div>
                    </li>
                    <li class="bg" id="circle">
                        <span class="iconfont" title="绘制圆形">&#xe75d;</span>
                    </li>
                    <li class="bg" id="ellipse">
                        <span class="iconfont" title="绘制椭圆">&#xe800;</span>
                    </li>
                    <li class="bg" id="eraser">
                        <span class="iconfont" title="橡皮擦">&#xe6b8;</span>
                    </li>
                </ul>
                <ul class="h_tool1 h_tool2">
                    <li class="bg" id="way">
                        <span class="iconfont" title="转换填充样式">&#xe644;</span>
                    </li>
                    <li class="bg bgp">
                        <span class="iconfont" title="修改填充色">&#xe649;</span>
                        <div class="polygon1 poly1">
                            <input type="color" id="fillCo"/>
                            <div class="trag"></div>
                        </div>
                    </li>
                    <li class="bg bgp">
                        <span class="iconfont" title="线条加粗">&#xe604;</span>
                        <div class="polygon2">
                            <input type="range" min="1" max="30" value="1" id="linew">
                            <div class="trag trag1"></div>
                            <p id="numW">0</p>
                        </div>
                    </li>
                    <li class="bg" id="revo">
                        <span class="iconfont" title="撤销">&#xe699;</span>
                    </li>
                    <li class="bg" id="refresh">
                        <span class="iconfont" title="刷新画板">&#xe747;</span>
                    </li>
                    <li class="bg" id="save">
                        <span class="iconfont" title="保存">&#xe69d;</span>
                    </li>
                </ul>
            </div>
        </div>
    </body>
</html>
<script src="js/index.js"></script>

js代码

$(function(){
    var canvas = $('#canvas')[0];
//  console.log(canvas);
    var ctx = canvas.getContext("2d");  //获取绘图环境
//  console.log(ctx);
    var num = 1;
    function palette(canvas,ctx){   //初始化画布内部元素默认样式
        this.strokeColor = 'red';   //默认选中红色触发颜色
        this.fillColor = 'green';   //默认选中绿色填充色
        this.style = 'tablet';  //默认选中直线形状
        this.type = 'stroke';   //默认的绘制方式是划
        this.ctx = ctx; //默认为绘图环境
        this.canvas = canvas;       //默认画布
        this.canvasW = canvas.width;    //默认画布宽
        this.canvasH = canvas.height;       //默认画布高
        this.history = [];  //默认的历史记录为数组
        this.edges = '3';   //默认的边数为3
    }
    var p = new palette(canvas,ctx);    //实例化出来一个palette,引进参数canvas和ctx

//  * 创建点击事件执行绘画方式
//  点击修改颜色
    $('.bg').on('click',function(){
        $(this).css('background','orange');
        $(this).siblings().css('background','skyblue');
        $(this).find('a').css('color','#07133d');
        $(this).siblings().children('a').css('color','#ffffff');
    });
//  改变input.number数值,边数改变函数
    range.onchange=function(){
        p.edges=this.value;
    }
//  点击直线按钮执行直线绘画
    line.onclick = function(e){
//      console.log('我是直线');
        p.style = 'line';
//      console.log(line);
    }
//  点击矩形按钮执行矩形绘画
    rect.onclick = function(e){
//      console.log('我是矩形');
        p.style = 'rect';
    }
//  点击等腰三角形按钮执行等腰三角形绘画
    dytriangle.onclick = function(e){
//      console.log('我是等腰三角形');
        p.style = 'dytriangle';
    }
//  点击直角三角形按钮执行直角三角形绘画
    zjtriangle.onclick = function(e){
//      console.log('我是直角三角形');
        p.style = 'zjtriangle';
    }
//  点击多边形按钮执行多边三角形绘画
    polygon.onclick = function(e){
//      console.log('我是多边三角形');
        p.style = 'polygon';
    }
//  点击绘画按钮执行绘画
    tablet.onclick = function(e){
        p.style = 'tablet';
    }
//  点击圆形绘画按钮执行圆形绘画
    circle.onclick = function(e){
        p.style = 'circle';
    }
//  点击椭圆绘画按钮执行椭圆绘画
    ellipse.onclick = function(e){
        p.style = 'ellipse';
    }
//  点击填充颜色按钮修改填充色
    fillCo.onchange = function(e){
        p.fillColor=this.value;
        p.strokeColor=this.value;
    }
//  点击橡皮按钮执行橡皮功能
    eraser.onclick = function(e){
        p.style = 'eraser';

    }
//  点击绘画方式按钮修绘画方式
    way.onclick = function(e){
        num*=-1;
        if(num==1){
            p.type="stroke";
//          console.log(this);
            $(this).find('span').css('color','skyblue');
        }else{
            p.type="fill";
            $(this).find('span').css('color','#ffffff');
        }
    }
//  点击刷新按钮执行页面刷新
    refresh.onclick=function(){
        p.history.length=0;
        p.ctx.clearRect(0, 0, p.canvasW, p.canvasH);
    }
//  点击修改线条宽度按钮修改线条宽度
    linew.oninput = function(e){
//      console.log(numW);
        ctx.lineWidth = this.value;
        numW.innerHTML = this.value;
    }
//  点击保存执行保存
    save.onclick=function(){
        p.save();
    }
//  点击撤销按钮返回上一层 that.history.length
    revo.onclick = function(){
        p.revo();
    };

//  * 创建palette类下的对象
    //  绘画初始化
    palette.prototype.init = function(){
        this.ctx.strokeStyle = this.strokeColor;
//      strokeStyle 属性设置或返回用于笔触的颜色、渐变或模式。
        this.ctx.fillStyle = this.fillColor;
//      fillStyle 属性设置或返回用于填充绘画的颜色、渐变或模式。
    }
    //  绘制直线
    palette.prototype.line = function(x1,y1,x2,y2){
        this.ctx.beginPath();
//      beginPath() 方法开始一条路径，或重置当前的路径
        this.ctx.moveTo(x1 - 0.5,y1 - 0.5);
//      moveTo() 方法可把窗口的左上角移动到一个指定的坐标。
        this.ctx.lineTo(x2 - 0.5,y2 - 0.5);
//      lineTo() 方法添加一个新点，然后创建从该点到画布中最后指定点的线条（该方法并不会创建线条）。
        this.ctx.closePath();
//      closePath() 方法创建从当前点到开始点的路径。
        this.ctx.stroke();
//      stroke() 方法会实际地绘制出通过 moveTo() 和 lineTo() 方法定义的路径。默认颜色是黑色。
    }
    //绘制矩形
    palette.prototype.rect = function(x1,y1,x2,y2){
        this.ctx.beginPath();
        this.ctx.rect(x1 - 0.5, y1 - 0.5, x2-x1, y2-y1);
        this.ctx.closePath();
        this.ctx[this.type]();
    }
//  绘制等腰三角形
    palette.prototype.dytriangle = function(x1,y1,x2,y2){
        this.ctx.beginPath();
        this.ctx.lineTo(x1, y1);
        this.ctx.lineTo(x2,y2);
        this.ctx.lineTo(2*x1-x2,y2);
        this.ctx.closePath();
        this.ctx[this.type]();
    }
//  绘制直角三角形
    palette.prototype.zjtriangle = function(x1,y1,x2,y2){
        this.ctx.beginPath();
        this.ctx.lineTo(x1,y1);
        this.ctx.lineTo(x2,y2);
        this.ctx.lineTo(x1,y2);
        this.ctx.closePath();
        this.ctx[this.type]();
    }
    //绘制多边形
    palette.prototype.polygon = function(x1,y1,x2,y2){
        this.ctx.beginPath();
//      console.log(this.edges)
        var deg=360/this.edges;
//      console.log(deg);
        var r= Math.sqrt(Math.pow(x2-x1,2),Math.pow(y2-y1),2);
//      console.log(r);
        for(var i=0;i<this.edges;i++){
            var x=r*Math.sin(deg*i*Math.PI/180);
            var y=r*Math.cos(deg*i*Math.PI/180)*(-1);
            this.ctx.lineTo(x1+x,y1+y);
        }
        this.ctx.closePath();
        this.ctx[this.type]();
    }
//  绘制圆形
    palette.prototype.circle = function(x1,y1,x2,y2){
        this.ctx.beginPath();
        var r= Math.sqrt(Math.pow(x2-x1,2),Math.pow(y2-y1),2);
        this.ctx.arc(x1,y1,r,0,2*Math.PI);
        this.ctx.closePath();
        this.ctx[this.type]();
    }
//  绘制写字板
    palette.prototype.tablet = function(x1,y1,x2,y2){
        this.ctx.lineTo(x2, y2);
        this.ctx[this.type]();
    }
//  绘制椭圆
    palette.prototype.ellipse = function(x1,y1,x2,y2){
        this.ctx.beginPath();
        for(var i=0;i<2*Math.PI;i+=0.01){
            ctx.lineTo(((x2-x1)/2)*Math.cos(i)+(x2+x1)/2,((y2-y1)/2)*Math.sin(i)+(y2+y1)/2);
        }
        this.ctx.closePath();
        this.ctx[this.type]();
    }
//  保存
    palette.prototype.save = function(x1,y1,x2,y2){
        location.href = canvas.toDataURL().replace('image/png','image/stream');
    }
//  橡皮
    palette.prototype.eraser = function(x1,y1,x2,y2){
        this.ctx.clearRect(x2, y2, 10, 10);
    }
//  撤回
    palette.prototype.revo = function(x1,y1,x2,y2){
        if ( this.history.length == 0) {
            alert("无效操作");
            return;
        }
        console.log(this.history.length);
        ctx.clearRect(0, 0, this.canvasW, this.canvasH);
        this.history.pop();
        if (this.history.length == 0) {
            return;
        }
        this.ctx.putImageData(this.history[this.history.length - 1], 0, 0);
    }
//  书写绘画函数
    palette.prototype.drawing = function(){
        var that = this;
//      console.log(this);
        this.canvas.onmousedown = function(e){  //鼠标移动画布的函数
//          * 获取鼠标起始位置
            var sx = e.offsetX;
//          获取鼠标到时间源的宽度
//          console.log(sx);
            var sy = e.offsetY;
//          获取鼠标到时间源的高度
//          console.log(sy);
            that.init();    //初始化样式
            if(that.style=="tablet"){
                that.ctx.beginPath();
//              beginPath() 方法开始一条路径，或重置当前的路径
                that.ctx.moveTo(sx,sy);
//              moveTo() 方法可把窗口的左上角移动到一个指定的坐标。
            }
//          获取鼠标移动时的坐标
            this.onmousemove = function(e){
                var mx = e.offsetX;
//              console.log(mx);
                var my = e.offsetY;
//              console.log(my);
                if (that.style!= "eraser") {
                    that.ctx.clearRect(0, 0, that.canvasW, that.canvasH);
//                  console.log(that.canvasW + ',' + that.canvasH);
//                  清除鼠标在画布移动的填充色
                    if(that.history.length>0){  //注：只能是that.history数组的长度大于0，才可以putImageData()
                        that.ctx.putImageData(that.history[that.history.length-1],0,0);
//                      putImageData() 方法将图像数据（从指定的 ImageData 对象）放回画布上。
                    }
            }
//              console.log(that.history.length);
                that[that.style](sx,sy,mx,my);
            }
//          获取鼠标移走的坐标
            this.onmouseup = function(){
                that.history.push(that.ctx.getImageData(0,0,that.canvasW,that.canvasH));
//              getImageData() 方法返回 ImageData 对象，该对象拷贝了画布指定矩形的像素数据。
                this.onmousemove=null;
                // 清空鼠标移动事件
                this.onmouseup=null;
                // 清空鼠标移出事件
            }
        }
    }
    p.drawing();    //调用drawing函数
});

css代码

@font-face {
    font-family: 'iconfont';
    src: url('https://at.alicdn.com/t/font_616746_akwhdkxqajrlik9.eot');
    src: url('https://at.alicdn.com/t/font_616746_akwhdkxqajrlik9.eot?#iefix') format('embedded-opentype'),
    url('https://at.alicdn.com/t/font_616746_akwhdkxqajrlik9.woff') format('woff'),
    url('https://at.alicdn.com/t/font_616746_akwhdkxqajrlik9.ttf') format('truetype'),
    url('https://at.alicdn.com/t/font_616746_akwhdkxqajrlik9.svg#iconfont') format('svg');
}
.iconfont{
    font-family:"iconfont";
    font-size: 26px;
    font-style:normal;
    color: #fff;
    -webkit-font-smoothing: antialiased;
    -moz-osx-font-smoothing: grayscale;
}
body,ul,ol,dl,h1,h2,h3,h4,h5,h6,p,input{
    margin: 0;
    padding: 0;
    list-style: none;
}
img,input{
    border: none;
}
a{
    text-decoration: none;
}
*{
    box-sizing:border-box;
}
body{
    font-family:"Helvetica Neue LT Rro","微软雅黑";
    font-size: 12px;
    color: #333;
/*    background: #3653dd;
*/}
.h_box{
    width: 1200px;
    height: 600px;
    border-radius: 30px;
    overflow: hidden;
    position: fixed;
    top: calc(45% - 300px);
    left: 50%;
    margin-left: -600px;
}
#canvas{
    background: rgba(0,0,0,.3);
    display: block;
    cursor: url(../cur/normal.cur),auto;
    /*cursor: pointer;*/
}
.h_console{
    cursor: pointer;
    width: 183px;
    height: 600px;
    background: #07133d;
    border-top-left-radius: 30px;
    border-bottom-left-radius: 30px;
    position: absolute;
    top: 0;
    left: 0;
}
.h_tool{
    width: 123px;
    height: 50px;
    background: orange;
    border-radius: 8px;
    margin: 22px auto 0;
    text-align: center;
    line-height: 50px;
    color: #fff;
    font-size: 24px;
}
.h_tool1{
    width: 143px;
    height: 294px;
    background: rgba(225,225,225,.2);
    margin: 20px auto;
    border-radius: 12px;
}
.h_tool2{
    height: 150px;
}
.h_tool1 li{
    width: 37px;
    height: 37px;
    background: skyblue;
    margin: 20px 5px 0;
    border-radius: 8px;
    float: left;
    line-height: 37px;
    text-align: center;
}
.h_tool1 li>span{
    cursor: pointer;
}
.h_tittle{
    border-top: 166px solid #07133d;
    border-left: 170px solid transparent;
    border-right: 157px solid transparent;
    border-bottom: 139px solid transparent;
    transform: rotate(225deg);
    position: absolute;
    top: -145px;
    right: -219px;
}
/*.h_tittle1>img{
    width: 44px;
    margin-top: 8px;
    margin-left: 104px;
    transform: rotate(272deg);
}
.h_tittle1{
    width: 274px;
    height: 110px;
    overflow: hidden;
    transform: rotate(180deg);
    position: absolute;
    top: -167px;
    right: -163px;
}*/
.h_tool1 .bgtb{
    background: orange;
}
.h_tool1 .bgtb a{
    color: #07133d;
}
.bgp{
    position: relative;
}
.polygon1{
    width: 41px;
    height: 23px;
    visibility: hidden;
    position: absolute;
    transition: all 0.6s;
    top: calc(50% - 14px);
    right: -68px;
}
.bgp:hover .polygon1 {
    visibility: visible;
    transform: translateX(-27px);
}
.polygon1 input{
    width: 40px;
    height: 100%;
    background: #494949;
    color: #fff;
    padding: 1px 1px 0 5px;
    font-weight: bold;
    border: 0;
    outline: none;
    position: absolute;
    top: 2px;
    right: 1px;
}
.trag{
    width: 0;
    height: 0;
    border-top: 6px solid #494949;
    border-left: 6px solid transparent;
    border-right: 6px solid transparent;
    border-bottom: 6px solid transparent;
    transform: rotate(90deg);
    position: absolute;
    top: 8.5px;
    left: -12px;
}
.polygon2{
    width: 126px;
    height: 26px;
    background: #494949;
    visibility: hidden;
    position: absolute;
    transition: all 0.6s;
    top: calc(50% - 12px);
    right: -152px;
}
.poly1{
    z-index: 999;
}
.bgp:hover .polygon2 {
    visibility: visible;
    transform: translateX(-27px);
}
.polygon2 input{
    width: 100px;
    background: #494949;
    border: 0;
    outline: none;
    cursor: pointer;
    position: absolute;
    top: 2.5px;
    left: 4px;
}
.trag1{
    top: 8px;
}
#numW{
    height: 100%;
    color: #fff;
    line-height: 26px;
    font-size: 14px;
    position: absolute;
    top: 0;
    right: 4px;
}
  • alipay_img
  • wechat_img
此作者没有提供个人介绍
最后更新于 2020-05-31
啥也没有呀
